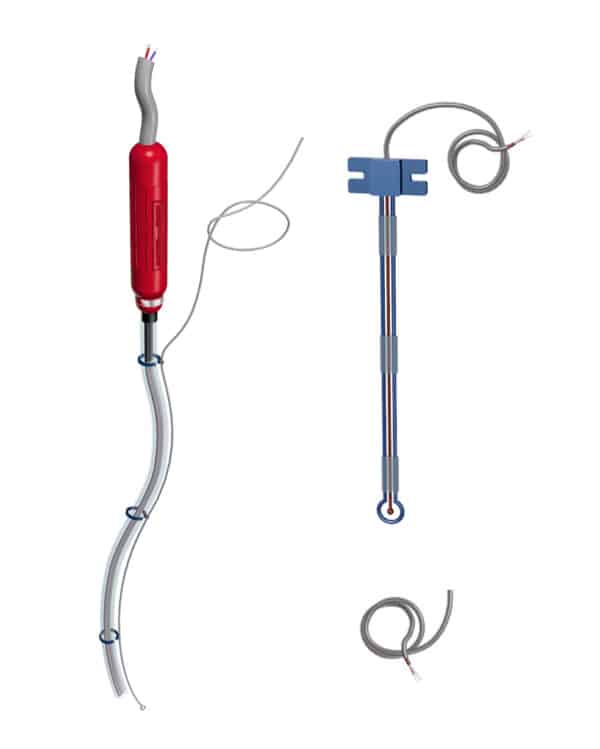

SOPT and SOTC Temperature Probes

sopt and sotc temperature probes
sopt and sotc temperature probes
sopt and sotc temperature probes
sopt and sotc temperature probes

SOPT and SOTC Temperature Probes

Galvatek’s SOPT and SOTC temperature probes guarantee accurate, reliable measurement of liquid temperatures in demanding industrial environments. Made from high-quality materials such as PFA, they offer optimum durability, high chemical resistance and adaptability to specific requirements thanks to their multiple configurations.

Request a Quote
Data sheet – SOPT and SOTC probes
  • Probe types:
    • SOPT: PT100 probe, 2 or 3 wires, 0°C class B, fluoropolymer sheathed with sealed end.
    • SOTC: J thermocouple probe, hot solder insulated with fluoropolymer sheath.
  • Materials: PFA for excellent chemical resistance.
  • Available configurations:
    • S mounting: Flexible fluoropolymer sheathed probe, standard length 1.5 m.

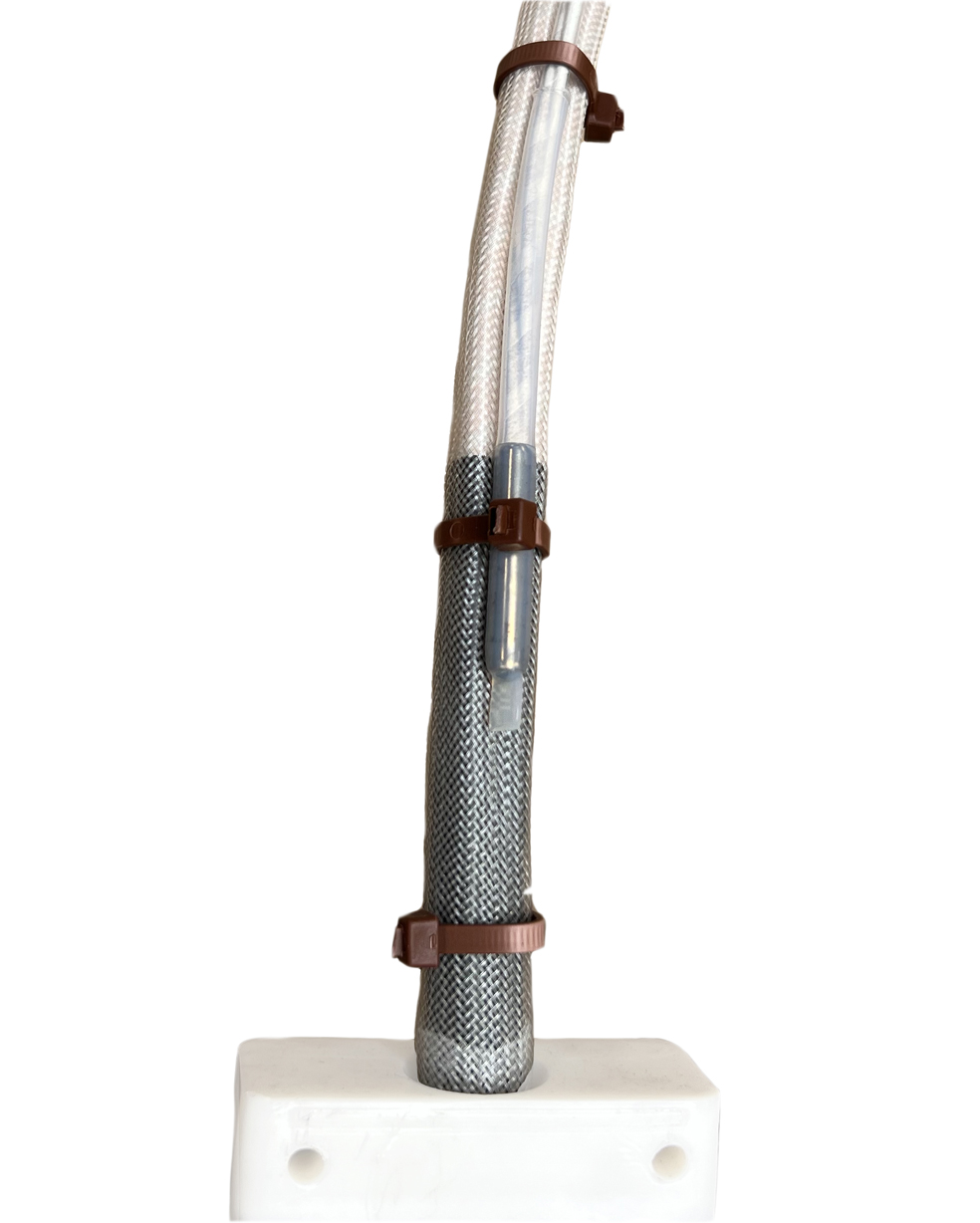

    • T mounting: Flexible probe mounted on immersion heater, compatible with cable glands.
    • Installation B: Rigid bendable probe, PP or PVDF-coated armature, maximum rigid length 2 m.
  • Applications: Precise measurement in a wide range of corrosive environments.
  • Flexibility of use: different mountings to meet specific needs (flexible, rigid, immersion heater-mounted).
  • Optimum accuracy: Complies with PT100 class B and thermocouple J standards for reliable measurements.
  • Adaptability: Customizable lengths up to 20 m as standard for flexible probes.
  • Durability: Materials resistant to aggressive chemical environments.
  • Chemical industry: Thermal monitoring of reactors and tanks.
  • Water treatment: Temperature measurement in treatment circuits.
  • Food industry: Use in processes requiring stable, reliable measurements.
  • General applications: Compatible with various thermal control systems.
  • Standards: Complies with PT100 class B and thermocouple J specifications.
  • Chemical resistance: Fluoropolymer materials guarantee durability even in the presence of corrosive substances.
  • Reliability: robust design ensures consistent performance under extreme conditions.

Additional Resources

Find the installation manual for the SOPT and SOTC Temperature Probes.
