SF Probe

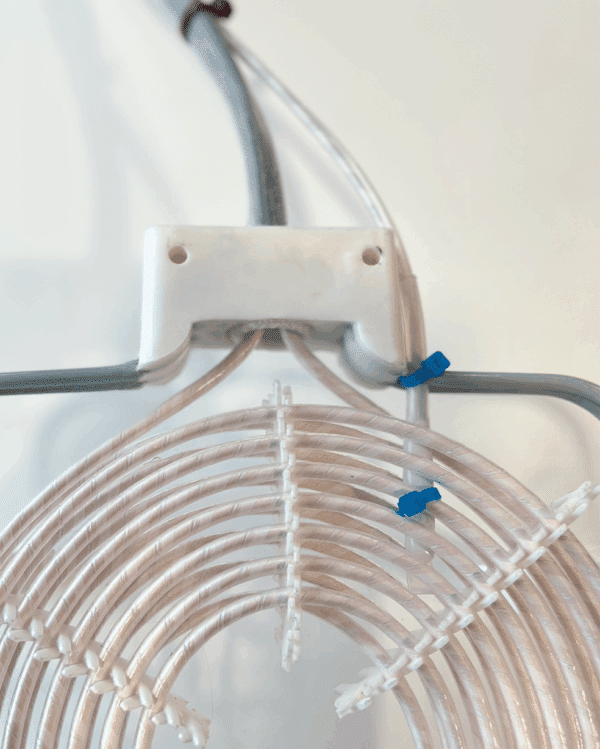

Sonde fusible détail

SF Probe

The SF Probe is a fusible safety probe designed to protect thermal equipment against excessive temperatures. Featuring a flexible FEP-coated cable, it contains two silicone-insulated conductors and a fusible element that is irreversibly destroyed when the critical temperature is reached (94°C or 121°C depending on the model). This device thus ensures an immediate interruption of the control circuit to prevent any risk of fire or severe overheating.

Request a Quote
Data sheet – Fuse probe
  • Trigger temperature: 94°C or 121°C depending on model
  • Tolerance :
    • 94°C model: ±5°C
    • 121°C model: ±2°C
  • Maximum current: 10 A
  • Voltage range: up to 25V
  • Fastening: Polypropylene (PP) and ETFE clamps
  • Mounting: On the non-heating part of the immersion heater, with the sensing element inserted between the heating coils.
  • Maximum safety: Control circuit cut-off in the event of overheating
  • Simple installation: Compatible with immersion heaters in service
  • Proven reliability: Irreversible operation without reset
  • Adaptability: Two models depending on process temperature
  • Protecting immersion heaters in chemical and electrolytic baths
  • Securing industrial heating systems
  • Use in environments with thermal hazards
  • Solutions for aqueous and viscous liquids

Additional Resources

Find the installation manual for the SF Probe.
