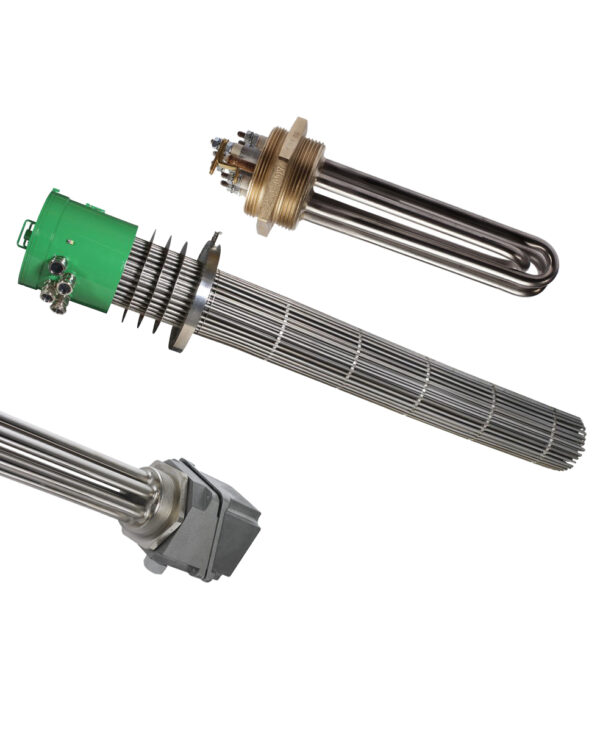

Sheathed Resistance Immersion Heaters

Sheathed Resistance Immersion Heaters

Sheathed Resistance Immersion Heaters

Sheathed resistance immersion heaters are designed to offer optimal thermal performance in various industrial environments. Suitable for heating liquids such as water, oils, certain acids, and heat transfer fluids, they ensure high energy efficiency and remarkable durability.

Request a Quote
  • Power: from 100 W to 35 kW, enabling precise adaptation to the specific needs of each application.
  • Maximum pressure : up to 15 bar, ensuring safe use in pressurized environments.
  • Cap materials: Available in steel, brass or stainless steel, offering enhanced corrosion resistance.
  • Mounting options:
    • Vertical or horizontal installation.
    • Flange-mounted immersion heaters for durable mounting in installations requiring enhanced safety.
    • Screw-in immersion heaters, ideal for installations requiring greater flexibility and shorter installation times.
  • Environment: Designed for normal conditions or potentially explosive atmospheres (ATEX/IECEx), guaranteeing optimum safety.
  • Compliance: Available for use in both explosive and non-explosive environments, in compliance with current safety standards.
  • Adaptability: wide choice of materials and options to suit specific customer processes and operating conditions.
  • Petrochemical industry: Heating of circulating or static fluids such as water, rinsing baths, oils, acids and circulating heat transfer fluids.
  • Chemistry: Temperature maintenance of chemical mixtures requiring thermal precision.
  • Food industry: Heating of liquid foodstuffs in tanks, vats or boilers.
  • Plastics: Thermal control of fluids used in plastics manufacturing processes.
  • Aerospace: Applications requiring precise, reliable thermal control.
  • ATEX/IECEx standards: comply with directives for use in potentially explosive atmospheres, ensuring maximum safety.
  • Extreme conditions: Reliable operation in ambient temperatures from -60°C to +80°C and fluid temperatures from -270°C to 1000°C.
  • Pressure: Designed to withstand pressures of up to 15 bar, ensuring safe use.
  • Resistant materials: Use of materials such as copper, 316L stainless steel, Incoloy 800 and Inconel 600 for optimum resistance to corrosion and high temperatures.

Additional Resources

Find the installation manual for the Sheathed Resistance Immersion Heaters.
