Flat Immersion Heater – Mounting A

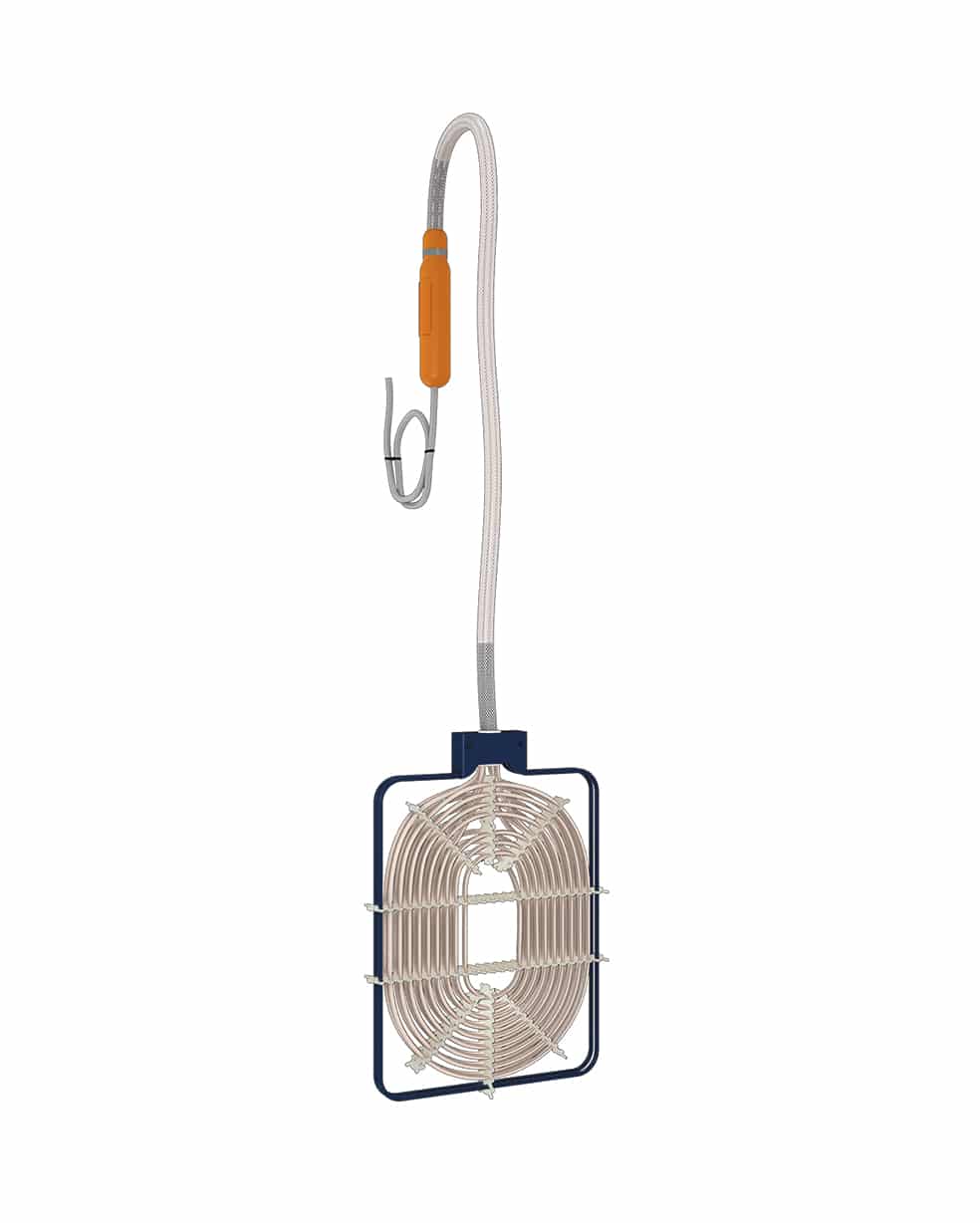

Thermoplongeur-plat---Montage-A---Sortie sur J

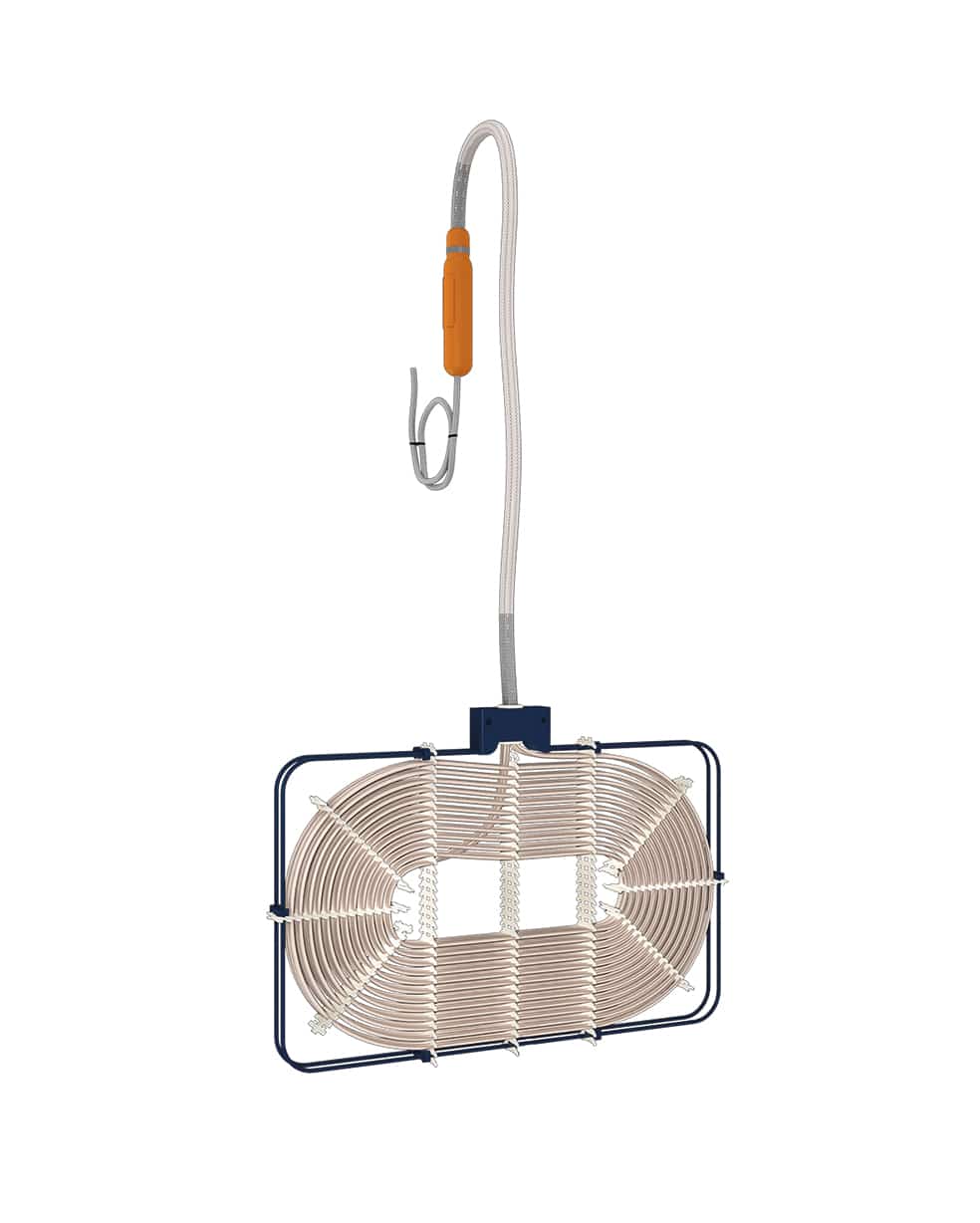

Thermoplongeur-plat---Montage-A---Sortie sur K

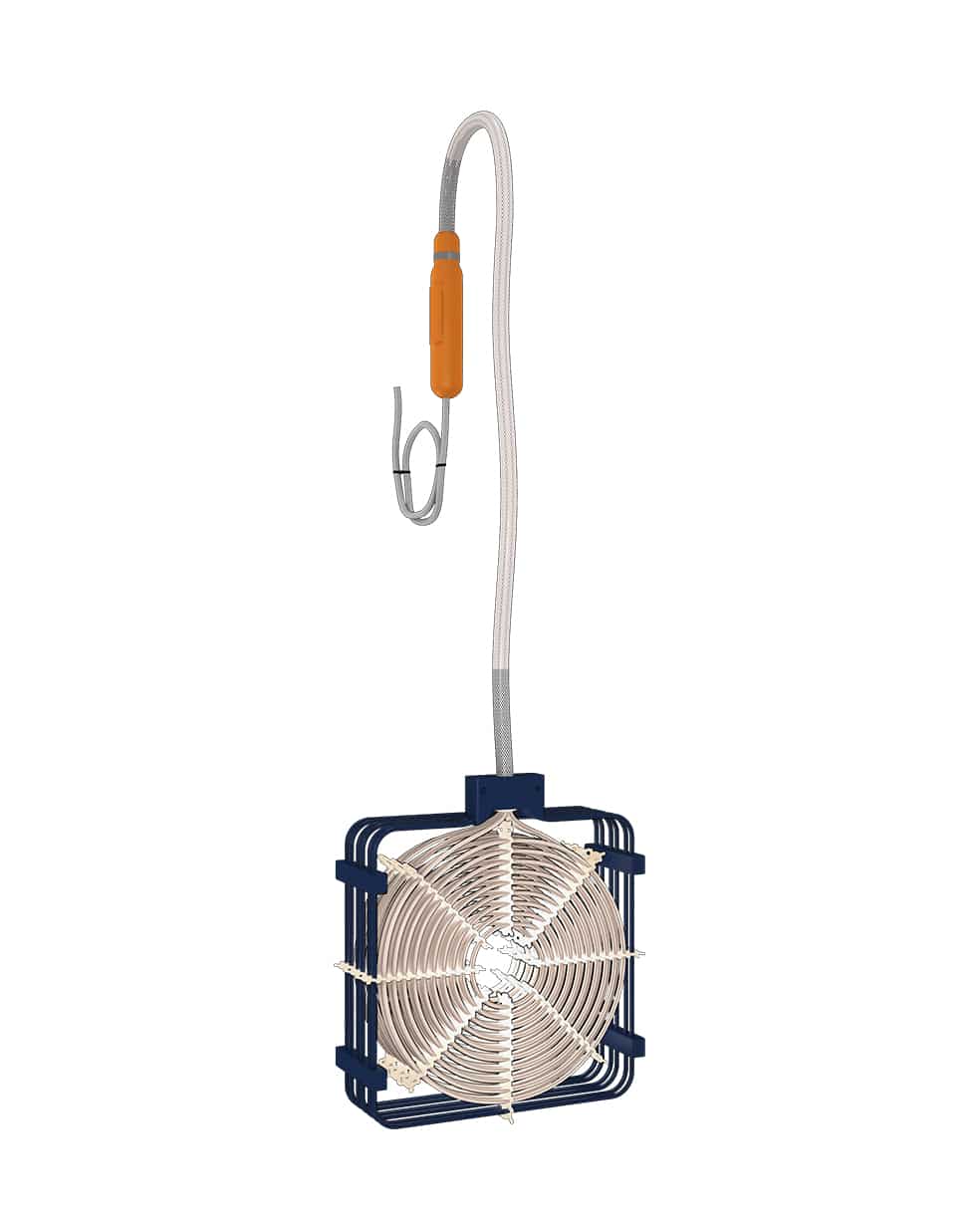

Thermoplongeur-plat-P90-Montage-A
Thermoplongeur-plat---Montage-A---Sortie sur J
Thermoplongeur-plat---Montage-A---Sortie sur K
Thermoplongeur-plat-P90-Montage-A

Flat Immersion Heater – Mounting A

Galvatherm® flat immersion heaters are designed to offer an efficient heating solution with a minimal footprint. They are particularly suitable for applications requiring a large heat exchange surface.

Request a Quote
Data sheet – A-mount immersion heater
  • Power: Available from 0.5 kW to 15 kW, particularly suitable up to 6 kW.
  • Materials: Metal frame coated with PP, PVDF, FEP or uncoated in stainless steel.
  • Installation: Quick, for edge or bottom of tank.
  • Heating cable: Insulated in FEP or PFA fluoropolymer.
  • Versatility: Suitable for all conventional tank configurations.
  • Small footprint: Large heat exchange surface in minimal space.
  • Quick, easy installation: Designed for easy integration in a variety of environments.
  • Heating of liquids in industrial tanks, including precise tank wall heating and frost protection.
  • Use in aggressive environments, especially for chemical bath applications.
  • Meets the requirements of EN 60519-1/2

Additional Resources

Find the installation manual for the Flat Immersion Heater - Mounting A.

Installation instructions Galvatherm

Options and Accessories

Ø75 Mm Cable Gland
Allow for 300 mm clearance on length H (mounting height on N), PP ref: PEPP, PVDF ref: PEPF

Ø75 Mm Cable Gland

Cable Extension
Power cable C of type HO5 VV-F or HO7 RN-F / Non-heating cable N for tank outlet.

Cable Extension

Removable Protector for A
Perforated plastic protector PP or PVDF - PP reference: PRPPP, PVDF reference: PRPPF

Removable Protector for A

Feet for A
PP or PVDF feet for tank bottom installation (standard height 50 mm) - PP ref.: PIPP, PVDF ref.: PIPF

Feet for A
