Flat Immersion Heater – D Mounting
Flat Immersion Heater – D Mounting

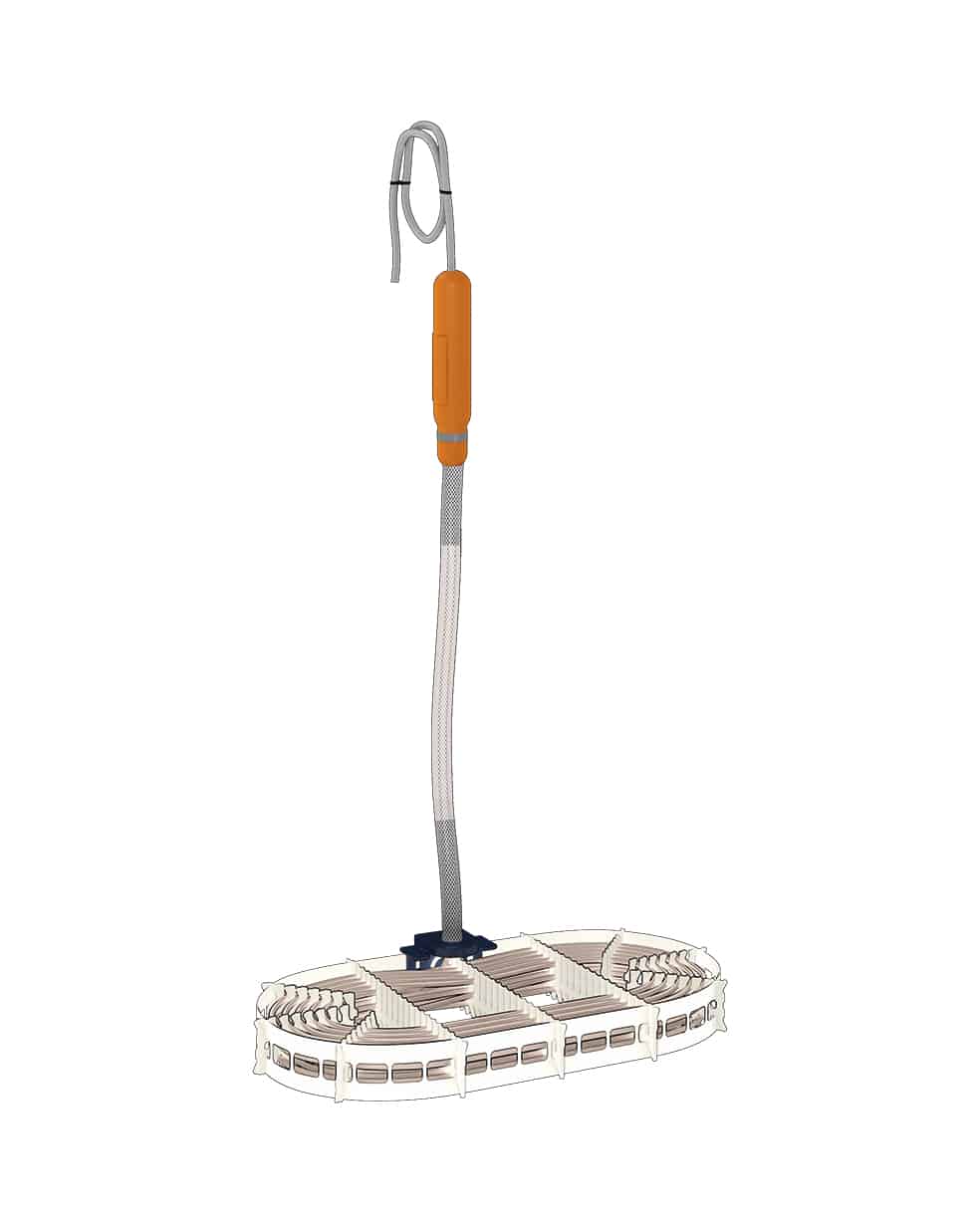

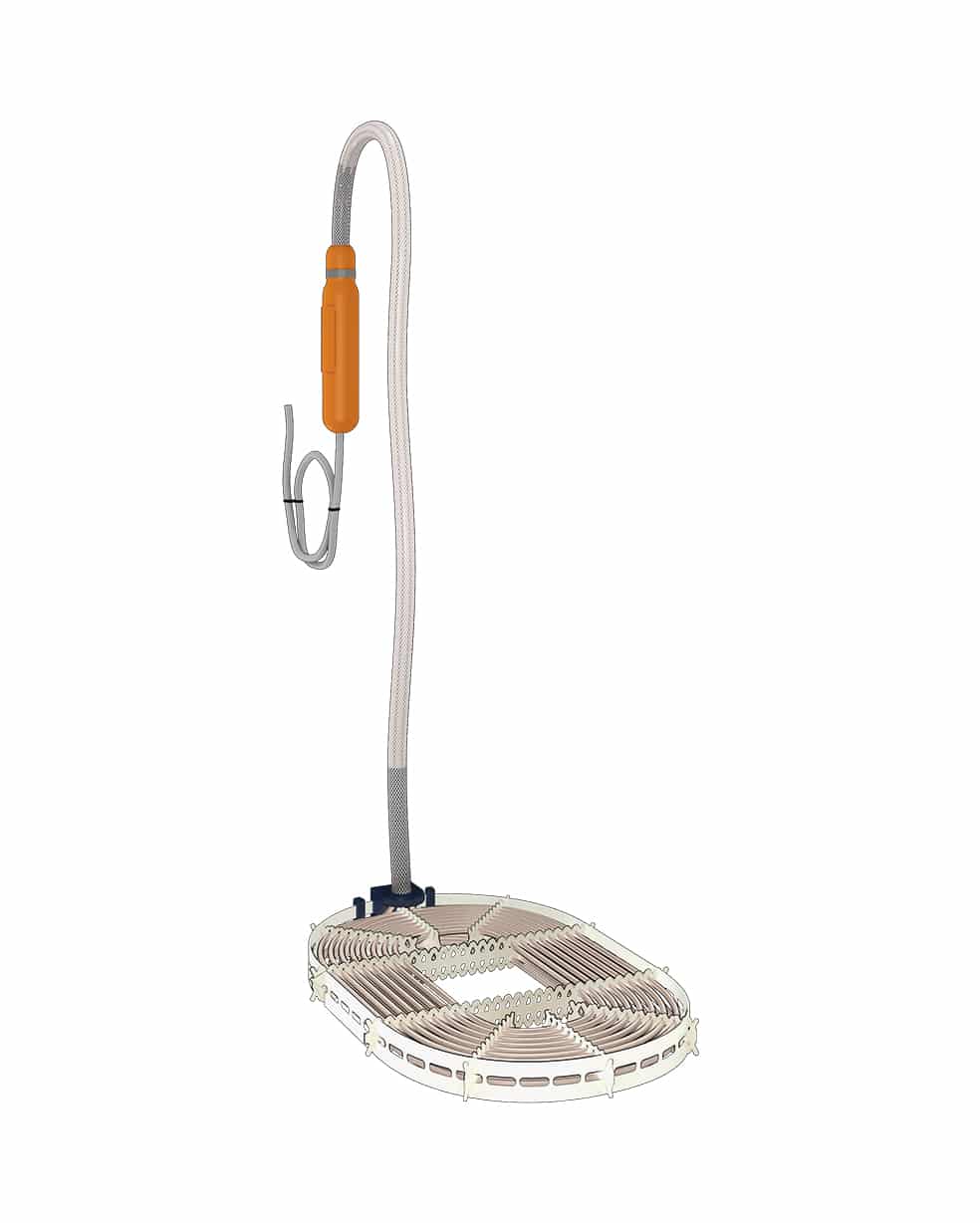

Galvatherm® flat-type immersion heaters, D-mount, are specifically designed for tank bottom applications and for lower power outputs, starting from 0.5 kW. Their all-plastic design ensures a minimal footprint, conforming to the oval shape of the heating element, making them particularly suitable for up to 6 kW. The non-heating cable extends perpendicularly from the heating element.
Options and Accessories
Allow for 300 mm clearance on length H (mounting height on N), PP ref: PEPP, PVDF ref: PEPF
Ø75 Mm Cable Gland
Power cable C of type HO5 VV-F or HO7 RN-F / Non-heating cable N for tank outlet.
Cable Extension
Perforated plastic protector PP or PVDF.
PP ref: PRPPP
PVDF ref: PRPPF
Removable Protector for D
Feet in PP or PVDF for installation at the bottom of the tank (standard height 50 mm)
PP ref.: PIPP
PVDF ref.: PIPF
Feet for D
Calculate the Power of your Heating and Cooling System.
