Flat immersion heater - Assembly type F

Back to product list
  • Universal « all plastic » model
  • Ideal for important powers (from 6kW)
  • Up to 15 kW
  • Ideal for large tanks

Universal model for all types of installation such as side of tank, bottom of tank with feet or on slidings.
Rigid structure ideal for important powers.

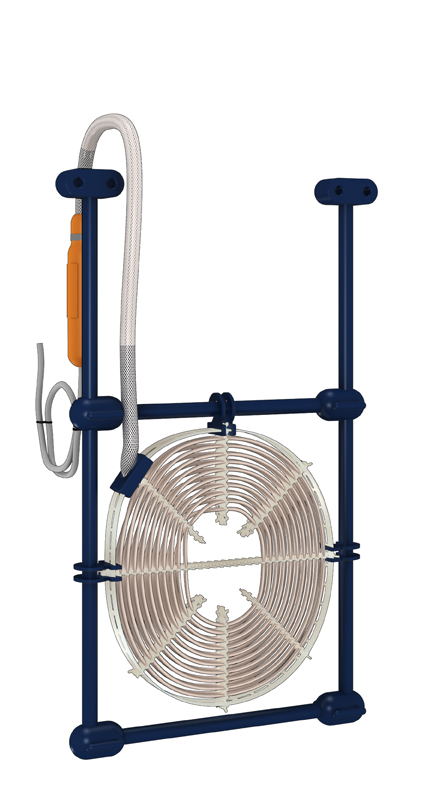

Assembly type F
On a plastic rod frame PVDF or PP.
Standard configuration : heating cable coated Teflon® FEP and PP or PVDF rod frame.
For use on the side or at the bottom of the tank. Available for heaters with reference beginning with P30, P40 and P90.

Options and accessories

Feet for F

For installation at the bottom of the tank, feet in PP or PVDF (standard height 100 mm)
ref in PP : PIPP
ref in PVDF : PIPF

Extra length of cables

Electrical cable C of type HO5 VV-F or HO7 RN-F. Non heating cable N to go out of the tank.

Cable-gland, Ø75 mm

Allow 300 mm extra on the H length (H=installation height on N)
ref in PP : PEPP
ref in PVDF : PEPF

Frame supports

Frame supports in PP or PVDF to fix on the edge of the tank, ref in PP : SUPP, ref in PVDF : SUPF

Wedges

Wedges for PP or PVDF frame to fix on the edge of the tank, ref in PP : CAPP, ref in PVDF : CAPF

Removable guards for F

Perforated plastic guard in PP or PVDF.
ref in PP : PRPPP
ref in PVDF : PRPPF
