Flat immersion heater - Assembly type B

Back to product list
  • Power from 0,5 kW to 15 kW
  • With a fixing bracket for an easy installation on the side of the tank
  • Minimum bulk



Models adapted to all installations on the side of the tank. With a PVDF or PP fixing bracket to secure the heater on the side. Recommended up to 6 kW.

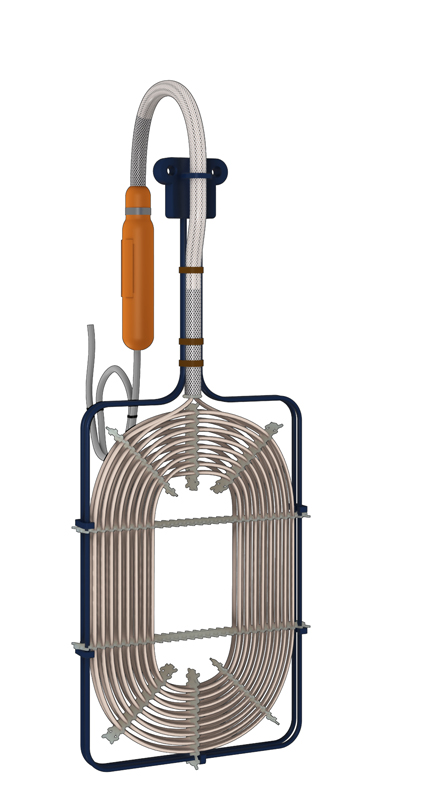

Assembly type B

On metallic frame coated PP, PVDF, FEP or stainless steel frame

Standard configuration : heating cable coated Teflon® FEP and metallic frame coated PP or PVDF. For use on the side of the tank. Available for heaters with reference beginning with P30, P40 and P90.

Options and accessories

Extra length of cables

Electrical cable C of type HO5 VV-F or HO7 RN-F. Non heating cable N to go out of the tank.

Cable-gland, Ø75 mm

Allow 300 mm extra on the H length (H=installation height on N)
ref in PP : PEPP
ref in PVDF : PEPF

Removable guards for B

Perforated plastic guard in PP or PVDF - ref in PP : PRPPP - ref in PVDF : PRPPF
