ETTO

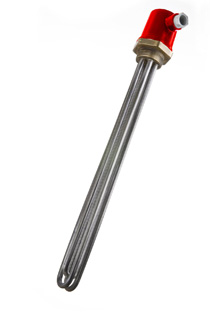

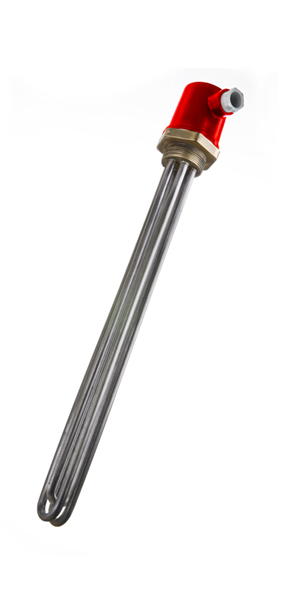

Screwed Rod Heaters ETTO

General points

The ETTO screwed rod heater can be used for heating non-aggressive aqueous fluids in containers, machines and systems. Direct contact between the heating pipes and the fluid means that rapid heat trans-fer takes place.

Specifications

The screwed rod heaters consist of three U-shaped, highly compressed tubular heating elements with a tube diameter of 8.5 mm, that are soldered into a G 1 1/2” threaded nipple.

Material

Tubular heating element made from stainless steel (material no. 1.4541) with threaded nipple made from brass (Ms). We supply the screwed rod heater with a terminal cover (material: PP, IP54).
